Nx Siemens motion Gear Coupler with Hypoid drive axle gear with dual input
simulation

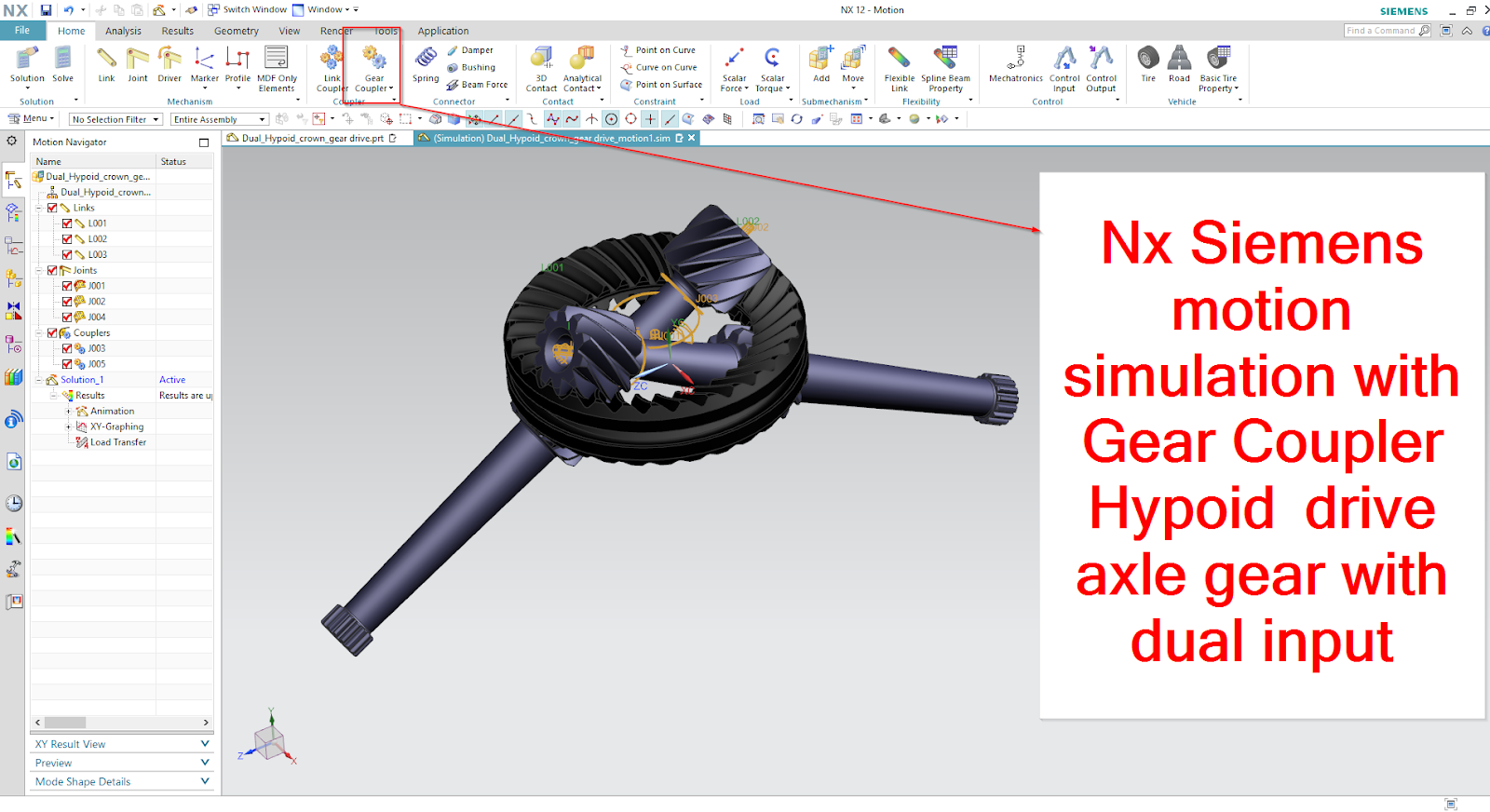

CAD model is used for motion simulation in Nx siemens.
Links, joints and Gear Couplers are used to drive axle gears.
The advantage of this gear is nearly no radial load from the gear mesh. So,
nether output ring gear or the input pinion need radial bearings to counter
the radial load from the gear mesh. The radial loads from the both meshes are
counter forcing each other. The ring gear can be installed directly inside a
car or a motorcycle wheel.
How drive axle gear simulation works in Siemens motion?
