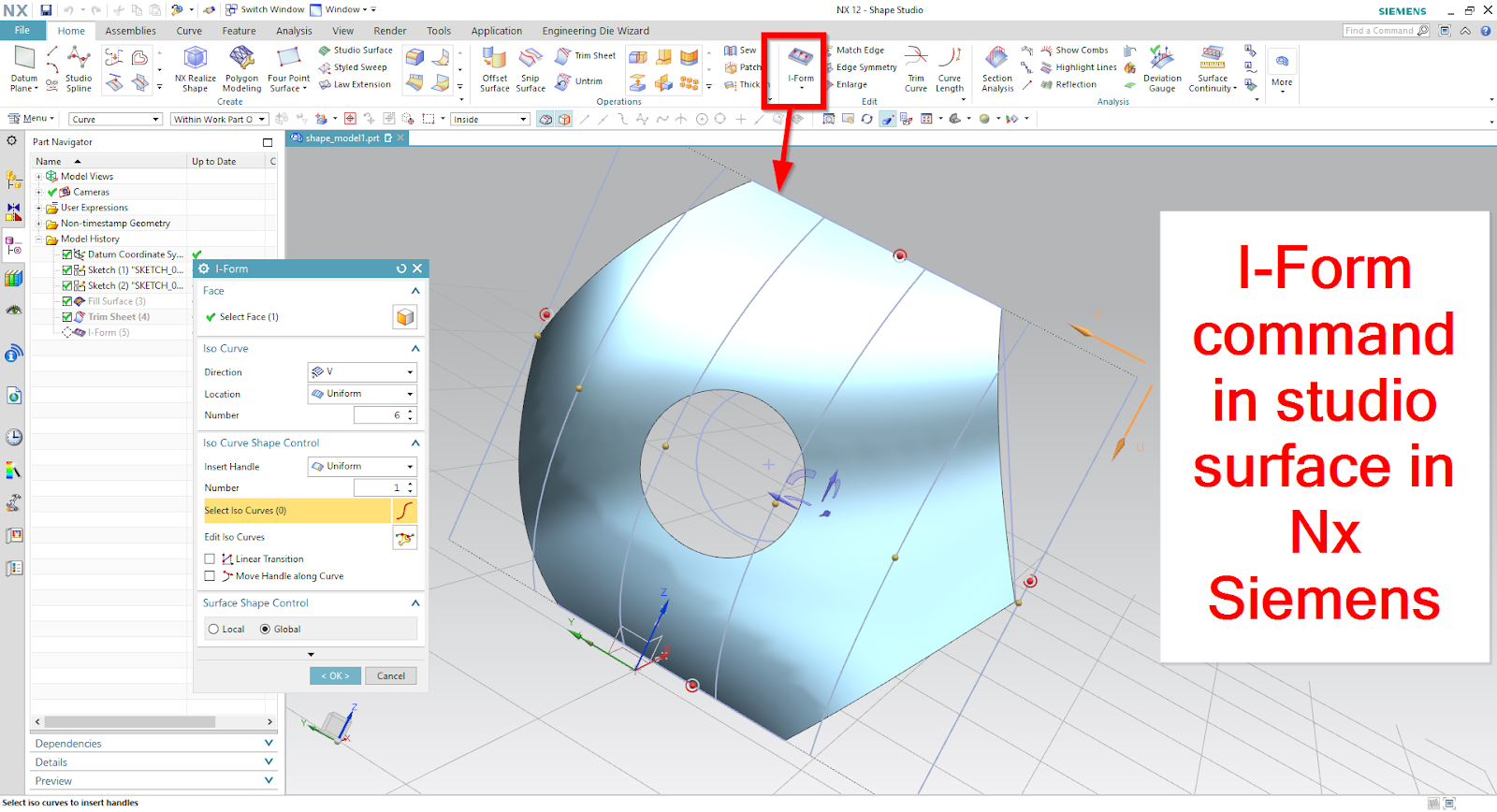

Siemens Nx Command: I form command dynamically modify a face by adding isoparametric curves in studio surface

Use the I-Form command to dynamically modify a face by adding isoparametric curves to it and by editing their direction.



You can select and modify the control poles or polygons of any type of face (B-surface and non-B-surface) without having to extract, untrim, refit, replace, or otherwise convert them.

Changes you make to a face are cumulative as you alter its shape.

For example, you can modify a face by first changing its shape along its U-direction isoparametric curves, and then modify it further by changing its V-direction isoparametric curves.

Note:The I-Form command creates an I-Form feature in the Part Navigator when the Associative Freeform Editing preference is enabled in the Modeling Preferences dialog box on the Freeform tab.

How I form command is works in Nx Siemens mentioned below video?
