Siemens Nx command: Four point surface command to create surface by specifying four points in shape studio

Four point surface command to create surface by specifying four points in shape studio in nx Siemens.

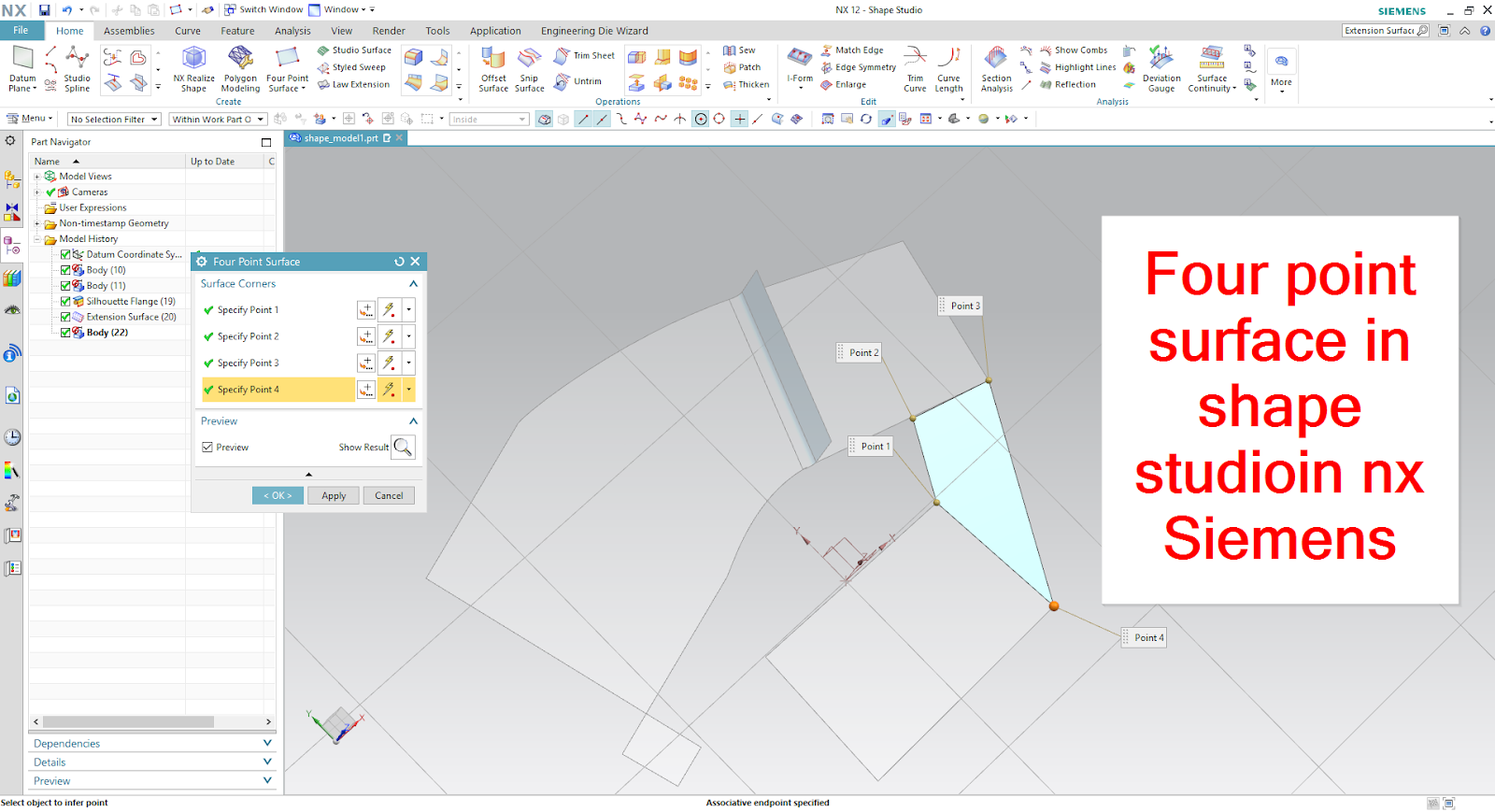

Use the Four Point Surface command to create a surface by specifying four points.



This is useful for creating base surfaces that support the surface based Class-A workflow.
You can easily modify such a surface by increasing the degree and patch into a more complex surface with the desired shape.

You must follow these point specifying conditions: No three selected points can be collinear. No two selected points can be the same or at the very same location in space. Four points must be specified to create the surface. If you specify three or fewer points an error message is displayed.

How four points surface command works in Nx Siemens mentioned in Video?
