Section curve in Nx Siemens | how to create intersection geometry specified
planes bodies, faces
Use the Section Curve command to create intersection geometry between
specified planes and bodies, faces, or curves.

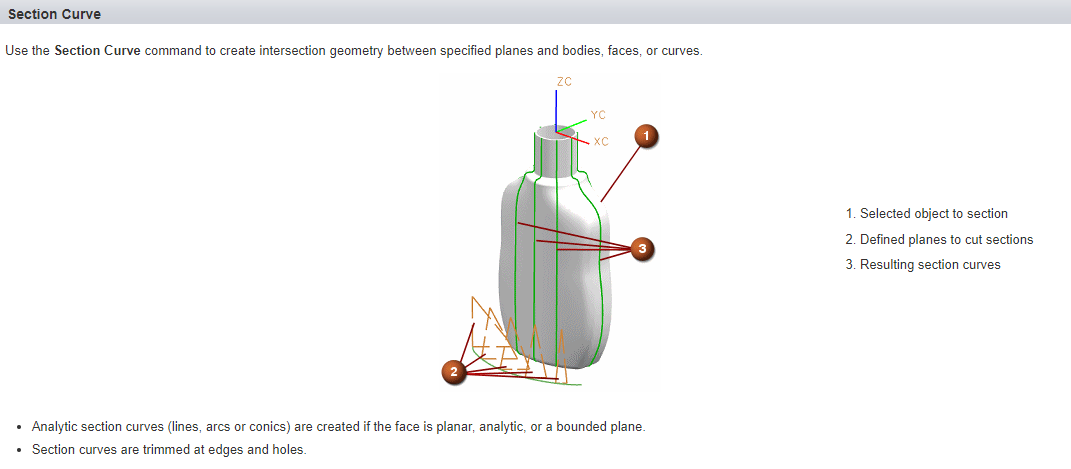

- Selected object to section
- Defined planes to cut sections
- Resulting section curves
Analytic section curves (lines, arcs or conics) are created if the face is
planar, analytic, or a bounded plane. Section curves are trimmed at edges and
holes
How section curve works in nx siemens which is mentioned below video?
