Draft feature is used with different way :
face, edge,tangent face, parting edge
Application:
Use the Draft command to modify faces by changing the angle relative to a draw
direction.
You can do the following:
- Specify multiple draft angles and assign an angle to a set of faces.
- Add a single draft feature to multiple bodies.
The Draft command is typically used to apply slope to faces for use in molded
or die cast parts, so that when the mold or die separates, the faces move away
from each other rather than sliding next to each other.
Generally, the draw direction is the direction in which the mold or die must
move to be separated from the part. However, if you are modeling a mold or
die, it is the direction in which the part must move to be separated from the
mold or die.

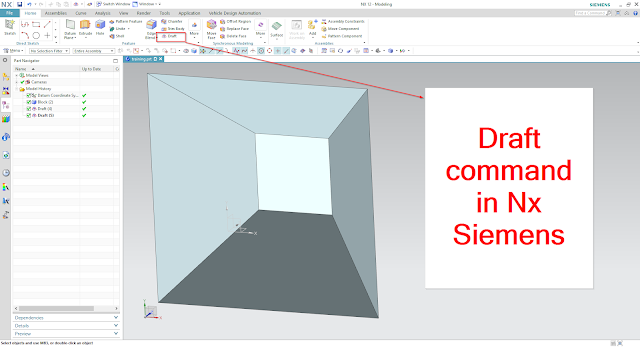

How draft command is used in Nx Siemens?
